304L Stainless Steel Sheet Plate
304L Stainless Steel Sheet Plate
List
304L Stainless Steel Sheet Plate
Standard: ASTM, AISI,  JIS, GB ,SUS
Thickness: 0.2mm~150mm
Width: 40-2000mm or as your requirement
Length: 2000-11000mm or as your requirement
Technique: hot rolled: 3~150mm thickness
cold rolled: 0.2~6mm thickness
Share This Product:
  • Characteristics
  • Surface/Finish

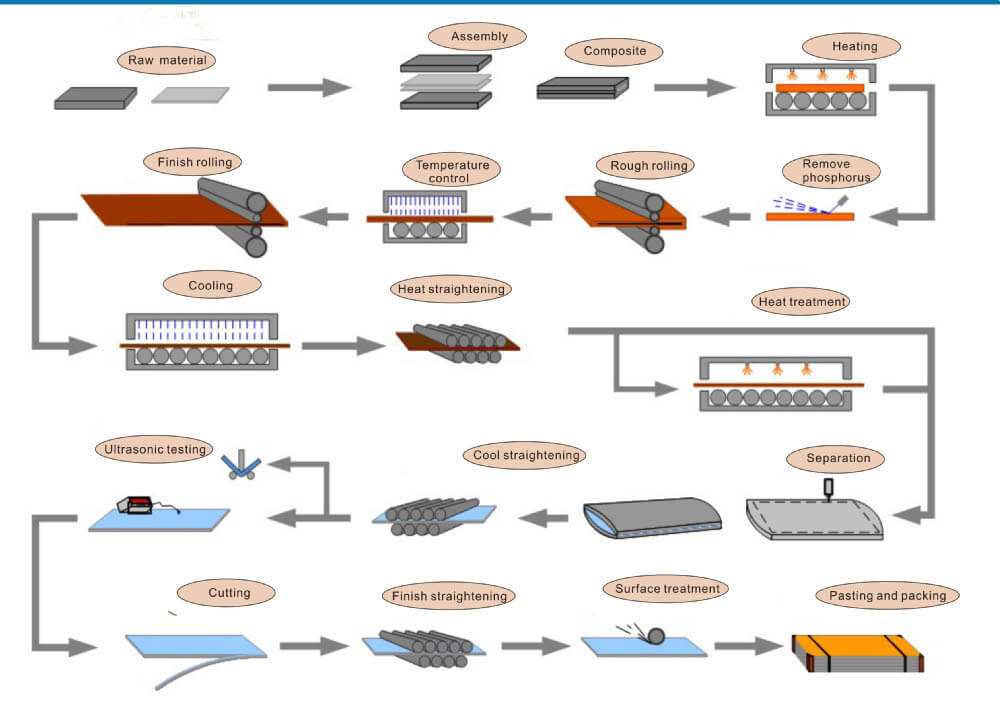

  • Production Process
  • Packing

Chemical Composition Limits

WT %

C
max

Mn
max

P
max

S
max

Si
max

Cr

Ni

other

304L

0.03

2

0.045

0.03

1

18 - 20

8-12

---


Physical Properties

Metric

English

Comments

Density

8 g/cc

0.289 lb/in³



Mechanical Properties

Hardness, Knoop

158

158

Converted from Rockwell B Hardness Value

Hardness, Rockwell B

82

82


Hardness, Rockwell C

15

15

10% Cold-worked

Hardness, Vickers

159

159

Converted from Rockwell B Hardness Value.

Tensile Strength, Ultimate

564 MPa

81800 psi

0% Cold-worked

Tensile Strength, Yield

210 MPa

30500 psi

0% Cold-worked

Elongation at Break

58 %

58 %

In 50mm (2 in.)

Modulus of Elasticity

193 - 200 GPa

28000 - 29000 ksi


Charpy Impact

216 J

159 ft-lb


2B

The surface brightness and flatness of 2B is better than 2D then theough a special
surface treatment to improve its mechanical properties,2B could nearly Satisfy
comprehensive uses

No.3

Polished with abrasive belt of git#100#200#,have better brightness with
discontinuous coarse stria used as inner and external omaments for building,
electrical appliances and kitchen utensils etc.

No.4

Polished with abrasive belt of grit#150#180,have better brightness with
discontinuous coarse stria, but thinner than NO.3, are used as bathtub
buildings inner and extemal omaments electrical appliances kitchen
utensils and food processing

BA

Cold rolled, bright annealed and skin-passed, the product have
excellent brightness and food reflexivity like mirrorm kitchen
apparatus, omament etc.

8K

The product have excellent brightness and prefer reflexivity can
be the mirror.

HL

Polished with abrasive belt of trit#150#320 on the NO.4 finish and has
continuous streaks, mainly used as buildings omaments elevators,
door of building, frontal plate etc.



Protected by PVC and PE cover.packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

All our products are packed, stored, transported according to the international regulation.

The products are  wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
