309S Stainless Steel Sheet Plate
309S Stainless Steel Sheet Plate
List
309S Stainless Steel Sheet Plate
Wenzhou Taixin Steel Co.,Limited products are precision-engineered using superior quality material.

Moreover, these Stainless Steel plates are acknowledged for being highly durable and resistant to corrosion. Available in various applications these can also be custom made as per the clients specific requirements.
Share This Product:
  • Characteristics
  • Surface/Finish

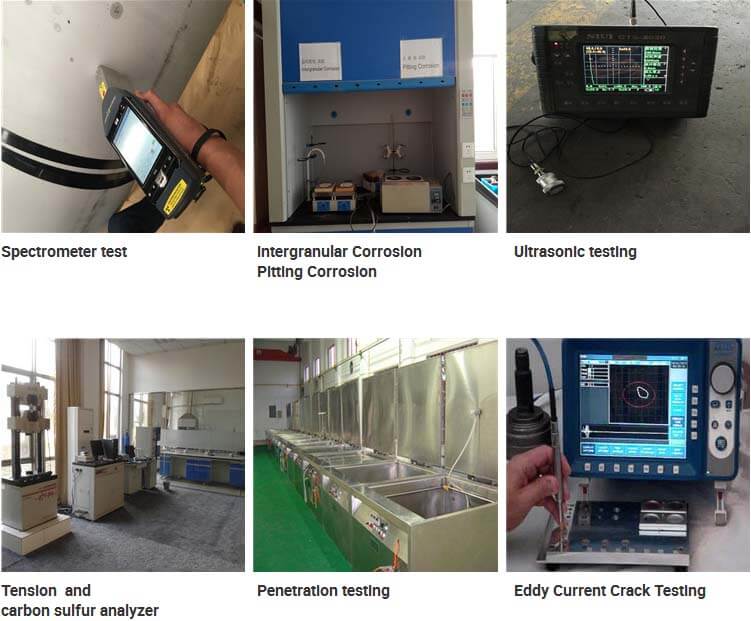

  • Product Test
  • Packing

Weight % (all values are maximum unless a range is otherwise indicated)



Element

309

309S

309H

Chromium

22.0 min.-24.0 max.

22.0 min.-24.0 max.

22.0 min.-24.0 max.

Nickel

12.0 min.-15.0 max.

12.0 min.-15.0 max.

12.0 min.-15.0 max.

Carbon

0.20

0.08

0.04 min.-0.10 max.

Manganese

2.00

2.00

2.00

Phosphorus

0.045

0.045

0.045

Sulfer

0.030

0.030

0.030

Silicon

0.75

0.75

0.75

Iron

Balance

Balance

Balance

2B

The surface brightness and flatness of 2B is better than 2D then theough a special
surface treatment to improve its mechanical properties,2B could nearly Satisfy
comprehensive uses

No.3

Polished with abrasive belt of git#100#200#,have better brightness with
discontinuous coarse stria used as inner and external omaments for building,
electrical appliances and kitchen utensils etc.

No.4

Polished with abrasive belt of grit#150#180,have better brightness with
discontinuous coarse stria, but thinner than NO.3, are used as bathtub
buildings inner and extemal omaments electrical appliances kitchen
utensils and food processing

BA

Cold rolled, bright annealed and skin-passed, the product have
excellent brightness and food reflexivity like mirrorm kitchen
apparatus, omament etc.

8K

The product have excellent brightness and prefer reflexivity can
be the mirror.

HL

Polished with abrasive belt of trit#150#320 on the NO.4 finish and has
continuous streaks, mainly used as buildings omaments elevators,
door of building, frontal plate etc.




All our products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
