Stainless Steel Elbow
Materials:
200 series: 201, 202, 202Cu, 204Cu
300 series: 301, 303, 303Cu, 304, 304Cu, 304L, 305, 309, 310, 310S, 316, 316L, 321
400 series: 409, 410, 420, 430, 431, 440c, 444, 446
600 series: 630, 631 (17-4ph, 17-7ph)
Duplex: 2205, 2507, 904L
Alloy: nitronic50, 60, nimonic75, 80A, 90, inconel600, 625, 718, 725
alloy20, 28, incoloy800, 825, hastelloyC276, C22, X, monel 400, k-500 etc.

Type:
45°elbow / 90°elbow / 180°elbow
SR (Short Radius) elbows and LR (Long Radius) elbows
Butt welded / Socket / Threaded
Share This Product:
  • CHARACTERISTICS
  • APPLICATION
  • PACKING

Grade

C

Si

Mn

P

S

Ni

Cr

Mo

201

≤0.15

≤0.75

5.5-7.5

≤0.06

≤0.03

3.5-5.5

16.0-18.0

-

202

≤0.15

≤1.0

7.5-10.0

≤0.06

≤0.03

4.-6.0

17.0-19.0

-

301

≤0.15

≤1.0

≤2.0

≤0.045

≤0.03

6.0-8.0

16.0-18.0

-

302

≤0.15

≤1.0

≤2.0

≤0.035

≤0.03

8.0-10.0

17.0-19.0

-

304

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

8.0-10.5

18.0-20.0

-

304L

≤0.03

≤1.0

≤2.0

≤0.035

≤0.03

9.0-13.0

18.0-20.0

-

309S

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

12.0-15.0

22.0-24.0

-

310S

≤0.08

≤1.5

≤2.0

≤0.035

≤0.03

19.0-22.0

24.0-26.0

-

316

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

10.0-14.0

16.0-18.0

2.0-3.0

316L

≤0.03

≤1.0

≤2.0

≤0.045

≤0.03

12.0-15.0

16.0-18.0

2.0-3.0

321

≤0.08

≤1.0

≤2.0

≤0.035

≤0.03

9.0-13.0

17.0-19.0

-

630

≤0.07

≤1.0

≤1.0

≤0.035

≤0.03

3.0-5.0

15.5-17.5

-

631

≤0.09

≤1.0

≤1.0

≤0.030

≤0.035

6.50-7.75

16.0-18.0

-

904L

≤2.0

≤0.045

≤1.0

≤0.035

-

23.0-28.0

19.0-23.0

4.0-5.0

2205

≤0.03

≤1.0

≤2.0

≤0.030

≤0.02

4.5-6.5

22.0-23.0

3.0-3.5

2507

≤0.03

≤0.80

≤1.2

≤0.035

≤0.02

6.0-8.0

24.0-26.0

3.0-5.0

2520

≤0.08

≤1.5

≤2.0

≤0.045

≤0.03

0.19-0.22

0.24-0.26

-

410

≤0.15

≤1.0

≤1.0

≤0.035

≤0.03

-

11.5-13.5

-

430

≤0.12

≤0.75

≤1.0

≤0.040

≤0.03

≤0.60

16.0-18.0

-

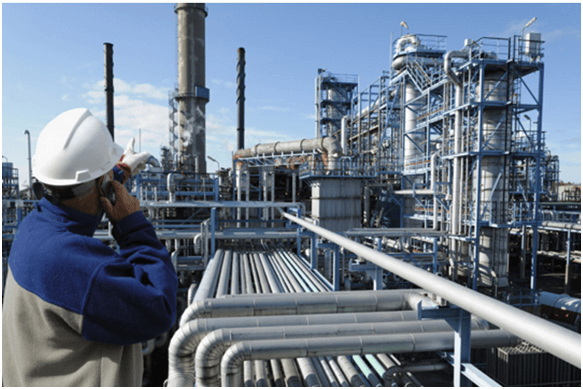

Various applications of pipe elbows are as follows:

They are manufactured to be used in flow lines for gases, fluids in industrial processes, medical, construction and many other specialized applications.

The elbows are constructed of heavy materials for rigid applications like extreme high/low temperature resistance etc.

The elbows are specifically designed for use on process and control systems, instrumentation, and equipment used in chemical, petroleum, fluid power, electronic and pulp and paper plants.

Packing
All our products are packed, stored, transported according to the international regulation.

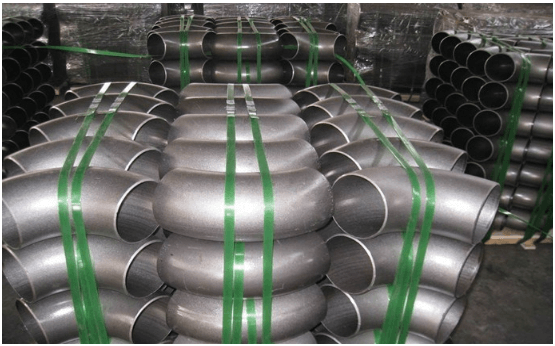

The elbows are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
