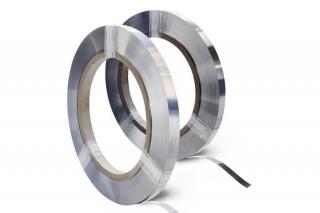

Stainless Steel Foil
Stainless Steel Foil
Equipped with the most advanced Rolling Mills, Vertical Bright Annealing Lines, Degreasing Lines, Precision Slitter, Shearing Lines and Stretch Bend Leveling Line.
Share This Product:
  • Characteristics
  • Deatils

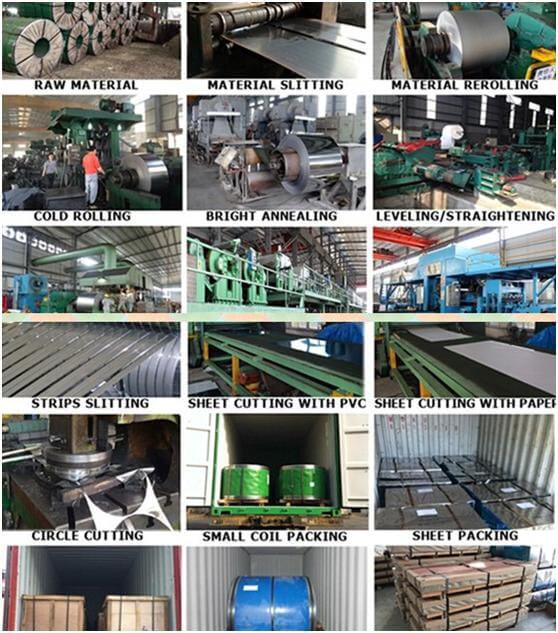

  • Production Process
  • Packing
Specification:

We are capable to produce high precision quality metal with 0.005mm minimum thickness and 2.0mm minimum width.  We enjoy specially design and advanced equipment to offer special needs to our clients!

Materials:
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,
200series:201,202,202cu,204;
400series:409,409L,410,420,430,431,440;
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7 ph,904L,etc

1. Thickness: 0.005mm to 0.300mm
2. Width: 2mm-550mm
3. Length: min 1m
4. Surface: 2B, BA, 8K, 6K, etc
5. Manufacture technology: cold drawn/cold rolled/hot rolled


Applications:

Chemical Insulation Banding
Construction / Commercial Insulation Banding
Insulation Banding - Power Generation
Food & Beverage Insulation Banding
Oil & Gas Pipeline Insulation Banding - Onshore
Oil & Gas Insulation Banding Refineries
Insulation Banding Process Industry

Grade:


Grade and Main chemical composition%



C

Si

Mn

P≤

S≤

Cr

Mo

Ni

Other

201

≤0.15

≤1.00

5.5-7.5

0.06

0.03

16-18

-

3.5-5.5

N≤0.25

202

≤0.15

≤1.00

7.5-10.0

0.06

0.03

17-19

-

4.0-6.0

N≤0.25

301

≤0.15

≤1.00

≤2.00

0.045

0.03

16-18

-

6.0-8.0

-

302

≤0.15

≤1.00

≤2.00

0.2

0.03

17-19

-

8-10.0

-

303

≤0.15

≤1.00

≤2.00

0.045

≥0.015

17-19

≤0.6

8.0-10.0

-

304

≤0.08

≤1.00

≤2.00

0.045

0.03

18-20

-

8-10.5

-

304L

≤0.03

≤1.00

≤2.00

0.045

0.03

18-20

-

9-13

-

305

≤0.12

≤1.00

≤2.00

0.045

0.03

17-19

-

10.5-13

-

309S

≤0.08

≤1.00

≤2.00

0.045

0.03

22-24

-

12-15

-

310S

≤0.08

≤1.5

≤2.00

0.045

0.03

24-26

-

19-22

-

316

≤0.08

≤1.00

≤2.00

0.045

0.03

16-18

2-3

10-14

-

316L

≤0.03

≤1.00

≤2.00

0.045

0.03

16-18

2-3

12-15

-

317

≤0.08

≤1.00

≤2.00

0.045

0.03

18-20

3-4

11-15

-

317L

≤0.03

≤1.00

≤2.00

0.045

0.03

18-20

3-4

11-15

-

321

≤0.08

≤1.00

≤2.00

0.045

0.03

17-19

-

9-13

Ti≥5×C

405

≤0.08

≤1.00

≤1.00

0.04

0.03

11.5-14.5

-

≤0.6

AL0.1-0.3

420F

0.26-0.4

≤1.00

≤1.25

0.06

≥0.15

12-14

≤0.6

≤0.6

-

430

≤0.12

≤0.75

≤1.00

0.04

0.03

16-18

-

≤0.6


All our  products are packed, stored, transported according to the international regulation.

The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
