Stainless Steel Tee
Stainless Steel Tee
List
Stainless Steel Tee

200 series: 201, 202, 202Cu, 204Cu

300 series: 301, 303, 303Cu, 304, 304Cu, 304L, 305, 309, 310, 310S, 316, 316L, 321

400 series: 409, 410, 420, 430, 431, 440c, 444, 446

600 series: 630, 631 (17-4ph, 17-7ph)

Duplex: 2205, 2507, 904L

Alloy: nitronic50, 60, nimonic75, 80A, 90, inconel600, 625, 718, 725

alloy20, 28, incoloy800, 825, hastelloyC276, C22, X, monel 400, k-500 etc.

Share This Product:
  • TYPE
  • CHARACTERISTICS
  • INSPECTION
  • PACKING
  • If you want size of 1/2" up to 8", we suggest choose seamless
  • If you want size of 10" up to 24", can be seamless or welded
  • Lateral tee
  • Y tee
  • cross tee

Grade

C

Si

Mn

P

S

Ni

Cr

Mo

201

≤0.15

≤0.75

5.5-7.5

≤0.06

≤0.03

3.5-5.5

16.0-18.0

-

202

≤0.15

≤1.0

7.5-10.0

≤0.06

≤0.03

4.-6.0

17.0-19.0

-

301

≤0.15

≤1.0

≤2.0

≤0.045

≤0.03

6.0-8.0

16.0-18.0

-

302

≤0.15

≤1.0

≤2.0

≤0.035

≤0.03

8.0-10.0

17.0-19.0

-

304

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

8.0-10.5

18.0-20.0

-

304L

≤0.03

≤1.0

≤2.0

≤0.035

≤0.03

9.0-13.0

18.0-20.0

-

309S

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

12.0-15.0

22.0-24.0

-

310S

≤0.08

≤1.5

≤2.0

≤0.035

≤0.03

19.0-22.0

24.0-26.0

-

316

≤0.08

≤1.0

≤2.0

≤0.045

≤0.03

10.0-14.0

16.0-18.0

2.0-3.0

316L

≤0.03

≤1.0

≤2.0

≤0.045

≤0.03

12.0-15.0

16.0-18.0

2.0-3.0

321

≤0.08

≤1.0

≤2.0

≤0.035

≤0.03

9.0-13.0

17.0-19.0

-

630

≤0.07

≤1.0

≤1.0

≤0.035

≤0.03

3.0-5.0

15.5-17.5

-

631

≤0.09

≤1.0

≤1.0

≤0.030

≤0.035

6.50-7.75

16.0-18.0

-

904L

≤2.0

≤0.045

≤1.0

≤0.035

-

23.0-28.0

19.0-23.0

4.0-5.0

2205

≤0.03

≤1.0

≤2.0

≤0.030

≤0.02

4.5-6.5

22.0-23.0

3.0-3.5

2507

≤0.03

≤0.80

≤1.2

≤0.035

≤0.02

6.0-8.0

24.0-26.0

3.0-5.0

2520

≤0.08

≤1.5

≤2.0

≤0.045

≤0.03

0.19-0.22

0.24-0.26

-

410

≤0.15

≤1.0

≤1.0

≤0.035

≤0.03

-

11.5-13.5

-

430

≤0.12

≤0.75

≤1.0

≤0.040

≤0.03

≤0.60

16.0-18.0

-

Packing
All our products are packed, stored, transported according to the international regulation.

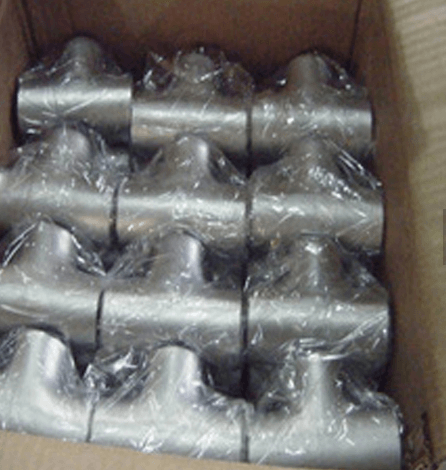

The tees are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
